Submersible
Plastic-Impeller Submersible Pumps
Explore plastic-impeller models for borehole and well-water projects.
- HBP3C
- HBP4C
HOBER · B2B Solar Pumping
BLDC Solar Water Pumps
For distributors, installers and project contractors. Explore submersible and surface pump families for your product range and water-supply projects, and share your flow, total dynamic head and quantity to request a suitable pump and controller selection.
BLDC pump and controller
- Max. flow of models shown Up to 70 m³/h
- Max. head of models shown Up to 255 m
- Motor power of models shown 0.3–2.2 kW
The maximum flow and the maximum head are separate limits of the models shown, and no one model reaches both at the same operating point. More BLDC models are available on inquiry.
02 / Product families
Explore HOBER BLDC Pump Families
Choose a pump family, then check the individual model specifications for your requirement.
Submersible
SS304-Impeller Submersible Pumps
Explore SS304-impeller models across different flow and head requirements.
- HBP3SC
- HBP4SC
Surface
Surface Pumps
Compare HBPF, self-priming HD-SWP and HD-SCPM surface pump ranges.
- HBPF
- HD-SWP
- HD-SCPM
Surface
Multistage Surface Pumps
Explore SS304-impeller multistage models for higher-head requirements.
- HD-SDJ
The family names the pump construction and the impeller material the source document states. A model is still checked against the flow, the head and the site before it is proposed.
03 / Water source
Start with Your Water Source
Tell us where the water comes from. We will also check the required flow, total dynamic head and installation conditions.
Borehole / Well
Share the well diameter, pumping water level and delivery requirement.
Where this is read HBP3C / HBP4C / HBP3SC / HBP4SC
River / Lake / Reservoir
Share the water condition, suction arrangement and delivery requirement.
Where this is read Surface pump families; suitability review required
Tank / Storage Reservoir
Share the inlet arrangement, elevation difference and required outlet pressure.
Where this is read Surface pump families; suitability review required
Not Sure Yet
Describe your project or send a simple site sketch. HOBER can review the information with you.
Where this is read Request assistance
The water source only says where to start. River, lake and reservoir water is still checked for water condition, sand and suction arrangement, and a surface pump is not assumed to suit every one of them.
04 / Performance range
BLDC Pump Performance Range
What the models this page shows reach, across different models and different operating conditions rather than on one pump.
The models shown: motor power 0.3–2.2 kW, maximum flow up to 70 m³/h, and maximum head up to 255 m. The flow limit and the head limit are not reached at the same operating point.
- Maximum flow of the models shown, up to 70 m³/h. Max. flow of models shown
- Maximum head of the models shown, up to 255 m. Max. head of models shown
- Motor power of the models shown: 0.3–2.2 kW. Motor power of models shown
Maximum flow and maximum head are separate limits of the models shown and do not occur at the same operating point, and more BLDC models are available on inquiry. Final selection requires your duty point and model-specific performance verification.
05 / Series
Explore by Series
Compare the series on the motor power, the maximum flow and the maximum head of the models this page shows, and check the model you need against your duty point.
HBP3C
Plastic-Impeller Submersible Solar Pump
Explore plastic-impeller models for borehole and well-water projects.
- Motor power of models shown
- 0.3–1.1 kW
- Max. flow of models shown
- Up to 7.5 m³/h
- Max. head of models shown
- Up to 62 m
HBP4C
Plastic-Impeller Submersible Solar Pump, Higher Flow and Head
Explore plastic-impeller models across a wider flow and head range for borehole and well-water projects.
- Motor power of models shown
- 0.4–1.5 kW
- Max. flow of models shown
- Up to 6 m³/h
- Max. head of models shown
- Up to 135 m
HBP3SC
SS304-Impeller Submersible Solar Pump
Explore SS304-impeller models for borehole and well-water projects.
- Motor power of models shown
- 0.3–0.4 kW
- Max. flow of models shown
- Up to 4 m³/h
- Max. head of models shown
- Up to 50 m
HBP4SC
SS304-Impeller Submersible Solar Pump, Higher Flow and Head
Explore SS304-impeller models across different flow and head requirements.
- Motor power of models shown
- 0.5–2.2 kW
- Max. flow of models shown
- Up to 36 m³/h
- Max. head of models shown
- Up to 255 m
HBPF
Solar Surface Pump
Explore the HBPF surface pump range for transfer and delivery duties.
- Motor power of models shown
- 0.55–0.75 kW
- Max. flow of models shown
- Up to 21 m³/h
- Max. head of models shown
- Up to 24 m
HD-SWP
Self-Priming Solar Surface Pump
Explore the self-priming HD-SWP surface pump range.
- Motor power of models shown
- 0.3–2.2 kW
- Max. flow of models shown
- Up to 70 m³/h
- Max. head of models shown
- Up to 16 m
HD-SCPM
Solar Surface Pump, High Durability
Explore the HD-SCPM surface pump range across flow and head requirements.
- Motor power of models shown
- 0.55–2.2 kW
- Max. flow of models shown
- Up to 70 m³/h
- Max. head of models shown
- Up to 30 m
HD-SDJ
Multistage Solar Surface Pump
Explore SS304-impeller multistage models for higher-head requirements.
- Motor power of models shown
- 0.3–1.5 kW
- Max. flow of models shown
- Up to 7 m³/h
- Max. head of models shown
- Up to 116 m
Each card states the figures of the models this page shows for that series. Check the individual model against your duty point before selection.
06 / Models and specifications
Models & Specifications
The models this page shows, listed with the motor power, the maximum flow and the maximum head each one states.
Selected models are shown. More models are available. Contact HOBER for additional models and selection support.
| Model | Motor power | Max. flow | Max. head | Inquiry |
|---|---|---|---|---|
| HBP3C Plastic-Impeller Submersible Solar Pump 2 models shown | ||||
| HBP3C-24-300-3-35 | 300 W | 3 m³/h | 35 m | Enquire about this model |
| HBP3C-110-1100-7.5-62 | 1100 W | 7.5 m³/h | 62 m | Enquire about this model |
| HBP4C Plastic-Impeller Submersible Solar Pump, Higher Flow and Head 2 models shown | ||||
| HBP4C-48-400-6-32 | 400 W | 6 m³/h | 32 m | Enquire about this model |
| HBP4C-110-1500-6-135 | 1500 W | 6 m³/h | 135 m | Enquire about this model |
| HBP3SC SS304-Impeller Submersible Solar Pump 2 models shown | ||||
| HBP3SC-24-300-4-35 | 300 W | 4 m³/h | 35 m | Enquire about this model |
| HBP3SC-48-400-4-50 | 400 W | 4 m³/h | 50 m | Enquire about this model |
| HBP4SC SS304-Impeller Submersible Solar Pump, Higher Flow and Head 3 models shown | ||||
| HBP4SC-48-500-5.2-45 | 500 W | 5.2 m³/h | 45 m | Enquire about this model |
| HBP4SC-110-1500-36-22 | 1500 W | 36 m³/h | 22 m | Enquire about this model |
| HBP4SC-300-2200-5.2-255 | 2200 W | 5.2 m³/h | 255 m | Enquire about this model |
| HBPF Solar Surface Pump 2 models shown | ||||
| HBPF-48-550-6-24 | 550 W | 6 m³/h | 24 m | Enquire about this model |
| HBPF-72-750-21-14 | 750 W | 21 m³/h | 14 m | Enquire about this model |
| HD-SWP Self-Priming Solar Surface Pump 2 models shown | ||||
| HD-SWP9-6-24-300 | 300 W | 9 m³/h | 6 m | Enquire about this model |
| HD-SWP70-16-280-2200 held for review | 2200 W | 70 m³/h | 16 m | Enquire about this model |
| HD-SCPM Solar Surface Pump, High Durability 2 models shown | ||||
| HD-SCPM6-30-48-550 | 550 W | 6 m³/h | 30 m | Enquire about this model |
| HD-SCPM70-24-280-2200 | 2200 W | 70 m³/h | 24 m | Enquire about this model |
| HD-SDJ Multistage Solar Surface Pump 2 models shown | ||||
| HD-SDJ4-24-24-300 | 300 W | 4 m³/h | 24 m | Enquire about this model |
| HD-SDJ7-116-110-1500 | 1500 W | 7 m³/h | 116 m | Enquire about this model |
No matching model found. Send your requirement for a suitability check. Selected models are shown. More models are available. Contact HOBER for additional models and selection support.
Selected models are shown. More models are available. Contact HOBER for additional models and selection support.
Selection note: the maximum flow and the maximum head of a model are not a simultaneous duty point.
The series records are followed as they stand: a figure the record does not state is left blank rather than guessed. Ask us and we will confirm the model against your duty point.
07 / The system
Understand the BLDC Pump System

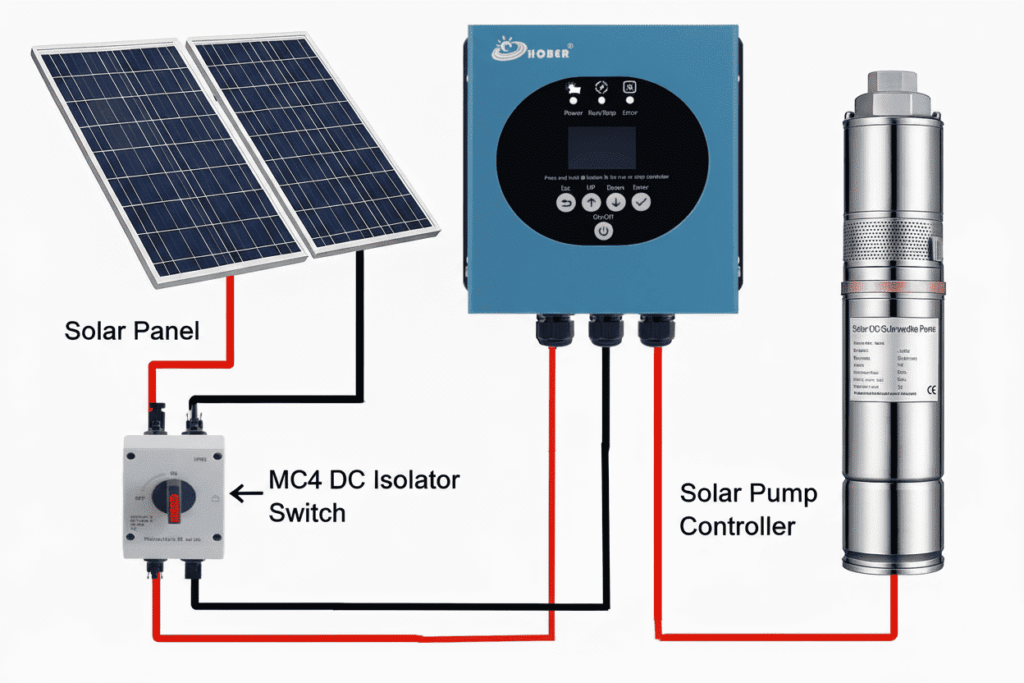

Solar panels → BLDC controller → BLDC pump → water delivery. What the pump set contains, and what you provide for the project.
System illustration
Conceptual layout, not a wiring diagram: the array feeds the BLDC solar pump controller, the controller drives the BLDC pump, and the pump delivers the water. The pump set is the pump, the controller and the sensors; the solar panels are not part of the set.
- Pump Set Pump, controller and sensors.
- Solar Panels Not included in the standard pump set.
- Project Configuration Share the site requirement so the pump, controller and proposed solar arrangement can be checked together.
The illustration is not a wiring diagram. The array, the controller and the pump are sized together for the site, so the pump and the controller are quoted as one selection rather than two.
08 / Working with us
Build Your Pump Range with HOBER
What a distributor, an installer or a project contractor can expect from us before an order is placed.
- A Range You Can Compare Review submersible and surface pump series side by side.
- Selection Around Your Requirement Share flow, head and site conditions for a model suitability review.
- Pump and Controller Details Confirm the selected pump, controller and supply scope before ordering.
- For Distribution and Project Supply Tell us your market, customer applications and expected quantities so we can discuss the next step.
09 / The other route
BLDC Pump Set or an AC Pump Solution?
Not which one is better, but which one a site is read on. The two are different systems and are selected differently.
| Your starting point | BLDC pump set | AC pump solution |
|---|---|---|
| Pump and motor | A selected BLDC pump and controller combination | An AC pump with a compatible drive |
| Drive terminology | BLDC controller | Solar pump inverter |
| Existing AC pump | Do not assume a BLDC controller is compatible | Request a compatibility check |
| Selection basis | Duty point and installation conditions | Duty point, motor details and installation conditions |
BLDC pump + controller
The controller is made for the pump it drives, and the pair is supplied together.
AC pump + compatible solar pump inverter
An AC pump driven from a solar pumping inverter, which is the AC line.
Already have an AC pump? Send the pump and motor nameplate details for a compatibility check. A pump already installed as an AC pump is not a BLDC project.
10 / Applications
Support the Projects Your Customers Need
The project types the range is read for. Suitability is still checked against the duty point, the water and the installation.
Borehole Water Supply
For installers and project suppliers specifying water supply from wells and boreholes.
Livestock Water Systems
For contractors planning water delivery and storage for livestock sites.
Irrigation Projects
For irrigation suppliers reviewing flow, delivery head and outlet pressure requirements.
Remote Water Supply
For EPC and project teams assessing solar pumping for remote water-supply installations.
The pictures show installations of the kind these projects use. They are the site's own photographs and name no customer, quantity or saving.
11 / Quick selection
Find the Right Starting Point
Share a project requirement or tell us which series you want to stock.
